Sunday, December 13, 2009

"SPEED.FUN D1"


This plan is already available.
Making the request through this email
nenodesign@hotmail.com
Price: 10€ via PAYPAL (PAYPAL EMAIL (mail@desenho3d.com))

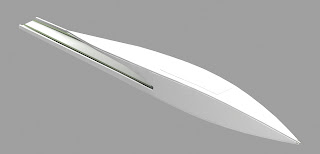

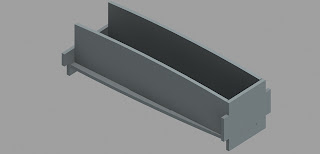

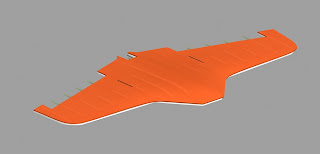

These are the imegens of the plan for 1 sheet of 3mm depron
Width: 730mm
With: 800mm
I will start the construction phase of a final model with step by step photos.
You can leave your questions about this model in this section.
I'll try to make the video of this model soon.

What is needed to make this model:
1 - Depron 3mm 1200x800
2 - Glue for Styrofoam
3 - Glue Epoxy
4 - Tube Carbon 6mm
5 - Tube of carbon or aluminum 10mm
6 - Balsa to drift and ailerons. (Optional)
7 - Fiberglass to cover the model. (Optional)



New Model
_________________________________________________





























































56 comments:

  1. I've done the flight test, fantastic speed .. incredible.

    It will be a model for people with a lot of practice, is a little unstable with wind as it was today.

    This can be offset if you set up a higher drift.

    I'll make some adjustments in the model (the battery box and wings).
    And this finished!

    ReplyDelete
  2. I will post some pictures today.
    The model is not finished, just have fiberglass wings.
    I'll make a new model, then the plan will be finished and available for anyone interested.

    ReplyDelete
  3. Hi guys I will do one more test flight with my prototype "SPEED.fun D1"

    I made some changes to the ailerons and the battery box.
    This thing is very fast, I will have to be very careful with the wind.

    Setup is: "E-flite BL15 DF 3600Kv, 5x5 prop, ESC: 85A, 4S 2250"

    I'll try to make a movie of the flight test.

    ReplyDelete
  4. I forgot to say that this thing weighs only 480g!
    If everything is well with the test flight will leave the plans on my blog to DOWNLOAD.

    ReplyDelete
  5. Hi guys, I'm back from the beach with the "SPEED.fun D1"
    Again a flight very radical, very .. very windy.
    This model is crazy, fantastic speed.
    I could not do the movie because he was alone.

    I decided to do some more changes to the model, I use the same method used to mount the "SPEED.fun D2", the wings are made with only two parties (the two wings are cut and assembled as a single piece).
    This will create more consistency in the model structure and it will be possible to make the model only with a sheet of depron of 1200x800 and the engine will stay cooler because the mount is so similar F27 Stryker.

    ReplyDelete
  6. I want one of these!
    We can dwnload the plans for free? When will be available?

    ReplyDelete
  7. Very nice! Hopefully this is going to be available as a plan! Same to the other designs! Very nice!

    ReplyDelete
  8. This material is fantastic, where can I buy the plan SPEEDFUN D1 and where can I buy depron?
    Thank you, fantastic work, love the design

    ReplyDelete
  9. Hi Nelson

    I'm doing my SPEEDFUN D1 but where is the CG point of this model?

    Thanks

    ReplyDelete
  10. You can see the image I uploaded to here as reference, I've also marked in CAD file.

    ReplyDelete
  11. Este também me agrada bastante, gosto dos pormenores das imagems, deu para tirar umas ideias de contrução, tás de parabéns, o 3D tb tá porreiro, mt bom trabalho

    ReplyDelete
  12. Obrigado Sérgio.
    Este modelo é extremamente rápido, a pistola marcou 230KH.
    Muito...muito bom

    ReplyDelete
  13. thnx for this smooth design

    grtz.

    ReplyDelete
  14. Hallo!

    You're building attractive models.

    I'd like to ask some questions.
    -Can you define COG in percents?
    -Is it proper to build the wing vith no washout -Are ailerons inline wih bottom plane of the wing in normal flight?
    -How far does two tubes in fuselage reach?

    It's all because me and my friends built similar model out of 'styrofoam'. It had semi-symmetrical profile, no washout, COG at 10% and fuse long as your model does. But we couldn't trim it out to fly stable. It also needed lots of up elevator to stay in the air.

    TNX

    ReplyDelete
  15. Hi

    Can you send pictures of your model and explain your questions in our forum?

    Thanks

    ReplyDelete
  16. What is your SETUP and is weight?

    ReplyDelete
  17. Hi,
    See my videos :
    http://www.youtube.com/watch?v=bh3DyCSdFms

    ReplyDelete
  18. Thanks, Good work, you can send photos please!

    ReplyDelete
  19. Can you tell where is the CG point of your model, some people have doubts.

    ReplyDelete
  20. Here are some pictures:
    [URL=http://www.casimages.com][img]http://nsm03.casimages.com/img/2010/05/05//100505103333934875974060.jpg[/img][/URL]
    [URL=http://www.casimages.com][img]http://nsm03.casimages.com/img/2010/05/03//100503090627934875959389.jpg[/img][/URL]
    [URL=http://www.casimages.com][img]http://nsm03.casimages.com/img/2010/05/04//100504043717934875964401.jpg[/img][/URL]
    [URL=http://www.casimages.com][img]http://nsm03.casimages.com/img/2010/05/04//100504043717934875964400.jpg[/img][/URL]
    http://www.youtube.com/watch?v=cESfjLX2yvg
    http://www.youtube.com/watch?v=_dN6YRe5Qv8
    I had some problems with CG;but the real problem is that this plane needs some angle(2°) for the motor (sorry for my english).
    My new CG is 25cm (26cm for you)
    You can see my problem on these new videos(now it's ok with more angle for motor mount....

    ReplyDelete
  21. My set-up:
    Motor hyperion HS2213 3585kv;Graupner CAM 4.7x4.7;lipo 3S 1600mah Hyperion G3;esc thunderbird 54A;2 hxt900 servo's;

    ReplyDelete
  22. Can you identify yourself? I do not know if you are the same as the previous message! thanks.

    ReplyDelete
  23. Yes it's me:sorry ;)

    ReplyDelete
  24. A future speedfun in balsa next time :
    http://www.casimages.com/galerie.php?id=136406h93487

    ReplyDelete
  25. Good job, I'm enjoying.
    I want to see the development.
    You will cover with fiberglass?

    ReplyDelete
  26. No i don't think for this one;just with oracover ;)

    ReplyDelete
  27. Some new pictures from my balsa's speedfun

    http://www.casimages.com/galerie.php?id=136406h93487

    ReplyDelete
  28. I'm long but ,here are some new pictures

    http://www.casimages.com/img.php?i=100725010041934876459830.jpg

    http://www.casimages.com/img.php?i=100725010042934876459831.jpg

    ReplyDelete
  29. Fantastic work, want to see it finished!

    ReplyDelete
  30. 4 new pictures ,with my home made motor's mount (carbon)
    http://www.casimages.com/galerie.php?id=136406h93487

    ReplyDelete
  31. I am amazed with your job didier! what is the weight of the model without the engine?
    Thanks

    ReplyDelete
  32. Like this picture with receiver,motor,esc and servo's(without battery),the weight is : 470gr

    [URL=http://www.casimages.com][img]http://nsm03.casimages.com/img/2010/08/03//100803080422934876508204.jpg[/img][/URL]

    ReplyDelete
  33. Some hobbylite filler before covering....

    http://www.casimages.com/galerie.php?id=136406h93487

    ReplyDelete
  34. Just finish oracover.
    Must finish the top of battery;

    http://www.casimages.com/galerie.php?id=136406h93487

    ReplyDelete
  35. Beautiful work
    Congratulations.

    I'm on vacation, when I finish the holiday will finish some of my projects.

    ReplyDelete
  36. This comment has been removed by the author.

    ReplyDelete
  37. The Linck of your pictures is here:

    http://www.casimages.com/galerie.php?id=136406h93487

    ReplyDelete
  38. Nice to hear that you go finish your projects ;)
    Have you some video's from your aircraft??

    ReplyDelete
  39. The last picture finished....
    Normally ,i will try it tomorrow.
    Video will come after if no damaged :)

    http://www.casimages.com/galerie.php?id=136406h93487

    ReplyDelete
  40. 1st fly and great experience : more speed and more maneuverability than the depron'speedfun.
    Must change my lipo for more C than my rhino 1550mah 25c 4S (motor het 2w20 from my squall phase3)
    No videos at this time ,surely this afternoon....

    ReplyDelete
  41. Sorry to be late ;)

    http://www.youtube.com/watch?v=9lgZX3M2pIM

    ReplyDelete
  42. Fantastic video, I have to find time to go back to my models.
    Thanks

    ReplyDelete
  43. Would someone be so kind and sent me the plans? nenodesign@hotmail.com no one answered.
    Thank tibormtb@gmail.com

    ReplyDelete
  44. OK, I'll send
    I've been busy, thanks

    ReplyDelete
  45. Thank you for the plans. I will work through the long winter evenings.

    ReplyDelete
  46. Hi Nelson, I can't believe your models are homemade.
    Awesome works and outstanding skills!
    Do you mind if i try to biuld the Speed.Fun D1 and the racer?
    Can you send me the plans?
    My email is noway79@gmail.com

    ReplyDelete
  47. Nelson thank you for the project and merry christmas!!!!

    ReplyDelete
  48. Hi Nelson
    Compliments for your models
    a perfect job,
    Can you send me the plans?
    My email is mesnick@tin.it

    ReplyDelete
  49. Bonjours,deja de grandes fellicitations pour tous les models realiser,je voudrais me confectionner un speed fun 1,ou puis je avoir les plans?.
    mon email/
    galletdavid6665@neuf.fr

    ReplyDelete
  50. bonjour , bravo, pourriez vous me faire parvenir les plans du speedfun d1
    merci d avance
    sebastienliot@msn.com

    ReplyDelete
  51. Hello everyone, I have received many requests to send the plans of the "" SPEED.FUN D1 "."
    I hope you understand I have to take some costs for sending these plans.
    The cost is 10 € you must send by paypal as soon as I get the value I send the plans via email.
    Note that the plan "" SPEED.FUN D1 "" needs some customized settings.
    Thank you all.

    ReplyDelete
  52. Boas,

    Que cola costuma usar para misturar com a fibra, para fibrar o avião?

    Cumprimentos

    ReplyDelete
  53. Olá, Nelson. Eu estou no Brasil e gostaria de fazer o download dos desenhos. Por favor, como devo proceder?

    ReplyDelete
